AC/DC> Enclosed- Enclosed Switching Power Supply
UHP Series
Wattage :200W~2500W
Features :
Slim and Low profile
Fanless design,free air convection
Built-in active PFC function150%
peak load capability(100ms)
High voltage output available for HV type
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter
LED indicator for power on
Model：UHP-200(R) / UHP-200A / UHP-350(R) / UHP-500(R) / UHP-750 / UHP-1000 / UHP-1500 / UHP-1500-HV / UHP-2500
Moving Sign Series
Wattage :150W~400W
Features :
Light weight and low profile
Suitable for high efficiency moving sign applications
Conformal coating (HSP, HDP, NEL, HSN series)
Semi-potted and design against rain splash (ERP Series)
Model
Single Output with PFC：LSP-160 / HSP-200 / UHP-200A / HSP-300 / ERPF-400
Single Output without PFC：HSN-300 / NEL-400 / ERP-200 / ERP-350
Dual Output with PFC：HDP-190
G3 Series
Wattage :15W~150W
Features :
Miniature size, non-PFC
5G vibration, 70℃ operation
300VAC input surge
Suitable for critical applications
2 outputs are isolated for RID series
ModelSingle：RS-15 / RS-25 / RS-35 / RS-50 / RS-75 / RS-100 / RS-150
Dual：RD-35 / RD-50 / RD-65 / RD-85 / RD-125 / RID-50 / RID-65 / RID-85 / RID-125
Triple：RT-50 / RT-65 / RT-85 / RT-125
Quad：RQ-50 / RQ-65 / RQ-85 / RQ-125
LRS Series
Wattage :35W~350W
Features :
Non-PFC, most economical models
Ultra compact and 1U low profile
300VAC input surge
No load power consumption: 0.2W~0.75W
5G vibration, 70℃ operation
Operating altitude up to 5000 meters
Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943
Model：LRS-35 / LRS-50 / LRS-75 / LRS-100 / LRS-150 / LRS-150F / LRS-200 / LRS-350 / LRS-450 / LRS-600
SE Series
Wattage :100W~1500W
Features :
Non-PFC
Economical medium to high power models
Model：SE-450 / SE-600 / SE-1000 / SE-1500
PFC Series
Wattage :150W~1000W
Features :
• Built-in active PFC function
• Full range input, complete functions
Model
RSP-75~500 Series
Wattage :75W~500W
Features :
1U Low profile with active PFC function: 75W~320W: 30 mm, 500W: 40.5 mm
Built-in constant current limiting circuit (RSP-75/100/150)
Built-in remote ON/OFF control (RSP-75/100/150/500)
Built-in remote sense (RSP-500 only)
Model：RSP-75 / RSP-100 / RSP-150 / RSP-200 / RSP-320 / RSP-500
HRP Series
Wattage :75W~1000W
Features :
Built-in active PFC function
High efficiency, no load power consumption <0.5W~0.75W
5 years warranty
Model
Single Output：HRP-75 / HRP-100 / HRP-150 / HRPG-150 / HRP-200 / HRPG-200 / HRP-300 / HRPG-300 / HRP-450 / HRPG-450 / HRP-600 / HRPG-600 / HRPG-1000
250% peak power：HRP-150N / HRP-300N / HRP-600N
350% peak power：HRP-150N3 / HRP-300N3 / HRP-600N3

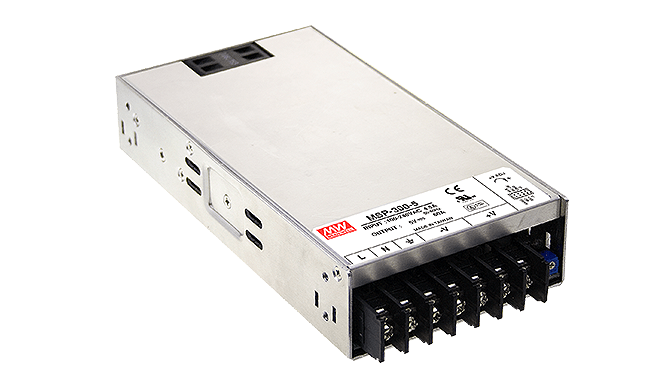

MSP Series
Wattage :100W~1000W
Features :
Medical level, built-in active PFC
Medical safety approved (MOOP level)
High efficiency, no load power consumption<0.5W~0.8W
5 years warranty
Model：MSP-100 / MSP-200 / MSP-300 / MSP-450 / MSP-600 / MSP-1000
Peripheral
Wattage :N/A
Features :
20A/40A Power Supply Redundancy Module
Supports system 1+1 and 1+N redundancy
Two DC input contacts and single output
Built-in two channels DC OK relay contacts for monitoring power status
Model：ERDN20 / ERDN40
AC/DC> DIN Rail- DIN Rail Power Supply
HDR Series
Wattage :15W~150W
Features :
Plastic case, step shape
1∅, full range input
Compact size, 1SU~6SU width (DIN EN43880)
Isolation class II
DC output voltage adjustable
No load power consumption <0.3W
Assemble on industrial rail TS-35 / 7.5 or 15
Suitable for building automation and control of household appliance
Model：HDR-15 / HDR-30 / HDR-60 / HDR-100 / HDR-150

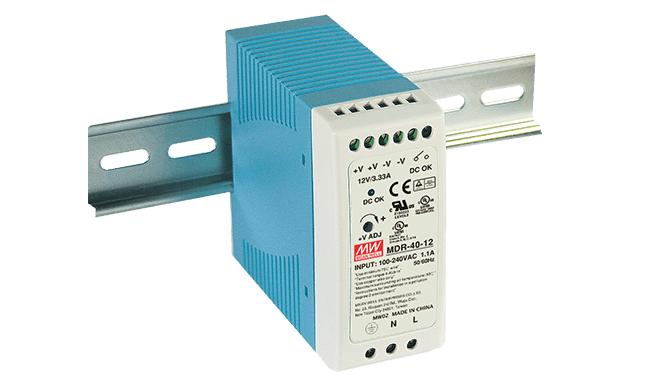

MDR Series
Wattage :10W~96W
Features :
Plastic case, ultra slim
1∅, full range input
No load power consumption<0.75W~1W
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in active PFC function
DC OK signal output (MDR-10/20)
DC OK relay contact (MDR-40/60/100)
Class I, Div 2 Hazardous Locations T4 (MDR-40/60)
Model：MDR-10 / MDR-20 / MDR-40 / MDR-60 / MDR-100
DRA Series
Wattage :40W~60W
Features :
Plastic case
1∅, full range input
Io can be adjusted 10~100% by 1~10VDC, PWM signal or resistance
Assemble on industrial rail TS-35 / 7.5 or 15
Suitable for machine vision inspection system and plant cultivation applications
Model：DRA-40 / DRA-60
EDR Series
Wattage :75W~150W
Features :
Metal case, low cost
1∅, full range input
Slim size, model width: 32 ~ 40mm
EMC EN55022 class A
Assemble on industrial rail TS-35 / 7.5 or 15
2 years warranty
Model：EDR-75 / EDR-120 / EDR-150
NDR Series
Wattage :75W~480W
Features :
Metal case, economical models
1∅, full range input
Slim size, model width: 32 ~ 85.5mm
EMC EN55022 class B
Assemble on industrial rail TS-35 / 7.5 or 15
3 years warranty
Model：NDR-75 / NDR-120 / NDR-240 / NDR-480
SDR Series
Wattage :75W~960W
Features :
Metal case, slim size
1∅, full range input (230VAC only for SDR-960)
94% high efficiency and complete functions
Built-in active PFC function (except SDR-75)
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in DC OK relay contact (except SDR-75)
130%~150% peak load capability by models
Current sharing function (SDR-480P/960)
Model：SDR-75 / SDR-120 / SDR-240 / SDR-480 / SDR-480P / SDR-960
TDR Series
Wattage :240W~960W
Features :
Metal case, slim size
3∅, 340~550VAC input
High efficiency up to 94.5%
Built-in active PFC function
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in DC OK relay contact
Model：TDR-240 / TDR-480 / TDR-960
WDR Series
Wattage : 60W~480W
Features :
Metal case, slim size
1∅ and 2∅ , 180~550VAC wide input
High efficiency up to 93%
Built-in active PFC function (240W & 480W)
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in DC OK relay contact
Model：WDR-60 / WDR-120 / WDR-240 / WDR-480
Peripheral
Wattage :N/A
Features :
20A redundant module
20A/40A DIN Rail Buffer Module
20A/40A DC UPS module
AC Inrush Current Limiter
Model
Redundancy Module 40A：DRDN40
Linear Shape：ICL-16L / ICL-28L
Redundancy Module 20A：DR-RDN20 / DRDN20UPS ：DR-UPS40 / DUPS20 / DUPS40
AC/DC> Open Frame- Open Frame Switching Power Supply
Industrial – On Board Type
Wattage :1W~90W
Features :
Assemble on the main PCB of the system
Miniature encapsulated type
No load power consumption<0.075W~0.1W
Working temperature:-30~+85℃ by models
Comply with EN55022 class B without any additional components
Various styles: PIN, SMD, Screw terminal style
Model：IRM-01 / IRM-02 / IRM-03 / IRM-05 / IRM-10 / IRM-15 / IRM-20 / IRM-30 / IRM-45 / IRM-60 / IRM-90
Industrial – Green PCB Type
Wattage :15W~500W
Features :
3″ x 2″, 4″ x 2″, 5″ x 3″ complete sizes for choice
PFC models: EPP, ELP series;
Non-PFC models: EPS series
No load power consumption <0.1W~0.5W
Suitable for ErP regulated end systems
Model
2.5″ x 1.8″：EPS-15
3″ x 2″：EPS-25 / EPS-35 / EPS-45S / EPS-65S / EPP-120S
4″ x 2″：EPS-45 / EPS-65 / EPS-120 / EPP-100 / EPP-150 / EPP-200
5″ x 3″：EPP-300 / EPP-400 / EPP-500
Others：ELP-75

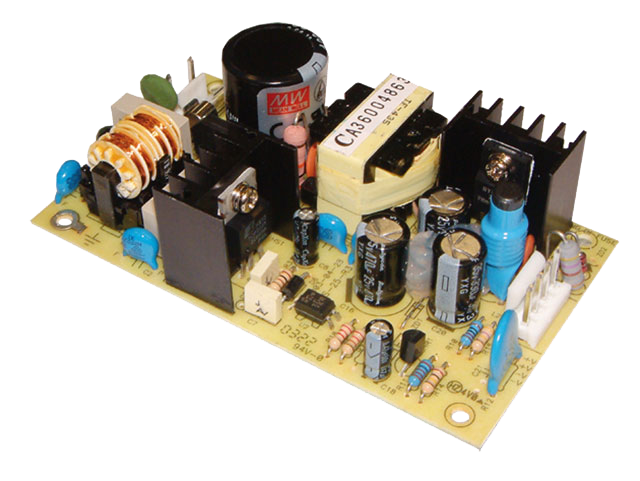

Industrial – PCB Type
Wattage :5W~250W
Features :
PCB type, non-PFC for small wattage models
Multiple form factors for different installations: 7″ x 4.25”, 5” x 3”, 4” x 2”, slim type
Model
Single：PS-05 / LPS-50 / LPS-75 / LPS-100 / LPP-100 / LPP-150
Dual：PD-25 / PD-45 / PD-65 / RPD-65 / PD-110 / PID-250
Triple：PT-45 / PT-65 / PT-6503 / RPT-65 / PPT-125
Medical – On Board Type
Wattage :5W~90W
Features :
Assemble on the main PCB of the system
Medical safety approved (2xMOPP)
Suitable for BF application with appropriate system consideration
Model
Encapsulated Type：MPM-05 / MPM-10 / MPM-15 / MPM-20 / MPM-30 / MPM-45 / MPM-65 / MPM-90
PCB Type：MFM-05 / MFM-10 / MFM-15 / MFM-20 / MFM-30
Medical – PCB Type
Wattage :30W~500W
Features :
Compact size
PCB type, non-PFC for small wattage models
Medical safety approved (2xMOPP)
Low leakage current
Suitable for BF application with appropriate system consideration for selected models
Model
Single：RPS-30 / RPS-45 / RPS-60 / RPS-65 / RPS-75 / RPS-120 / RPS-120S / RPS-160 / RPS-200 / RPS-300 / RPS-300-C / RPS-400 / RPS-500
Triple：RPT-60 / RPT-75 / RPT-160
Quad：MPQ-200
AC/DC> Security & Specific-
Harsh Environment—HEP Series
Wattage :100W~2300W
Features :
Fanless design
High efficiency up to 96%
Wide working temperature range -55~+70℃
Rugged metal case with IP65 design (IP68 option available), withstand 10G vibration
Operating altitude up to 5000 meters
Build-in CANBus and PMBus /MODBus by optional (1000W and 2300W only)
Suitable for high/low temperature, high dust, high moisture, high vibration, high salt outdoor or harsh environment
6 years warranty
Model
Single：HEP-100 / HEP-150 / HEP-185 / HEP-240 / HEP-320 / HEP-480 / HEP-600 / HEP-1000 / HEP-2300 / HEP-2300-HV
Security—DRS Series
Wattage :240W & 480W
Features :
Universal input 90~305VAC (277VAC available)
All-in-one function with Power supply, DC-UPS, battery charger and status monitoring in ONE compact unit
Signal and alarms design meet UL2524, NFPA1221, BS EN/EN54-4 and GB17945 requirement
Form C relay contacts and LED indicators for AC Fail, Battery Low, Charger Fail, and DC-OK
Built-in MODBus protocol, CANBus optional
Charging curve can be set with SBP-001
Model：DRS-240 / DRS-480

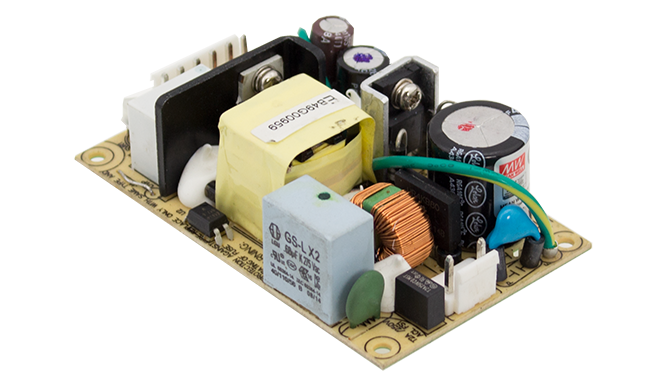

Security—PSC Series
Wattage :35W~160W
Features :
With UPS function (need external batteries)
Suitable for security industry or battery backup systems
Built-in active PFC function (PSC-160)
Case available
Model：PSC-35 / PSC-60 / PSC-100 / PSC-160

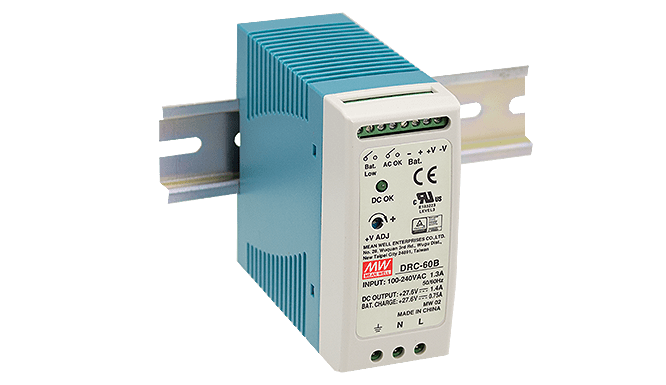

Security—DRC Series
Wattage :40W~180W
Features :
With UPS function (need external batteries)
Suitable for security industry or battery backup systems
Assemble on industrial rail TS-35 / 7.5 or 15
Model：DRC-40 / DRC-60 / DRC-100 / DRC-180

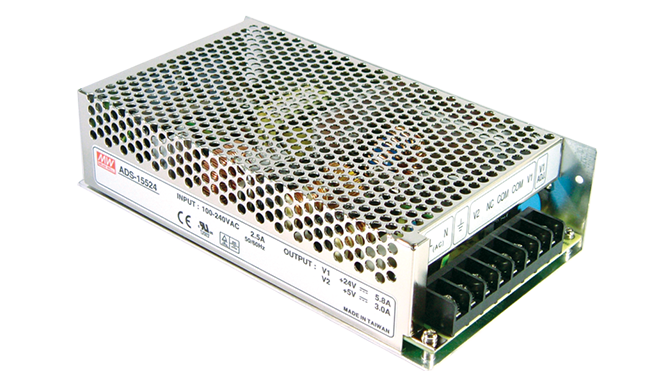

Security—SCP & AD/ ADS/ ADD Series
Wattage :35W~155W
Features :
With UPS function (need external batteries) for AD/ADD series
Suitable for security industry or battery backup systems
Model
Single：SCP-35 / SCP-50 / SCP-75
Dual：AD-55 / ADS-55 / AD-155 / ADS-155
AC/DC> Programmable Power-
CSP Series
Wattage :3000W
Features :
Full range 180~264VAC input
Built-in active PFC function
High efficiency up to 93%
Built-in DC fans for forced air cooling
Output voltage/current programmable
Active current sharing up to 9000W(2+1)
Built-in remote ON/OFF control / Auxiliary power / power OK signal
Protections: short circuit/over current/over voltage/over temperature/ fan failure
5 years warranty
Model：CSP-3000
PHP Series (Water-cooled)
Wattage :3500W
Features :
Water-cooled heat dissipation technology
Output voltage and constant current level programmable
Support PMBus communication protocol (CANBus optional)
Support PSUs in parallel connection
High output voltage available for HV type
Active current sharing, total system power up to 14000W (3+1)
Optional cold plate for quick implementation,ordering no.: HS-656
Model：PHP-3500 / PHP-3500-HV
DPU Series
Wattage :3200W
Features :
Universal AC Input/ Full Range
Built-in Active PFC
High efficiency up to 94.5%
air cooling by built-in DC fan
Output voltage and constant current level programmable
Built-in OR-ing FET, support hot swap (hot) plug function
Protection: Short Circuit/ Overload / Over voltage/ Over temperature
Optional conformal coating
Safety approval: UL/TUV/EAC/CE/CB
5 years warranty
Model：DPU-3200

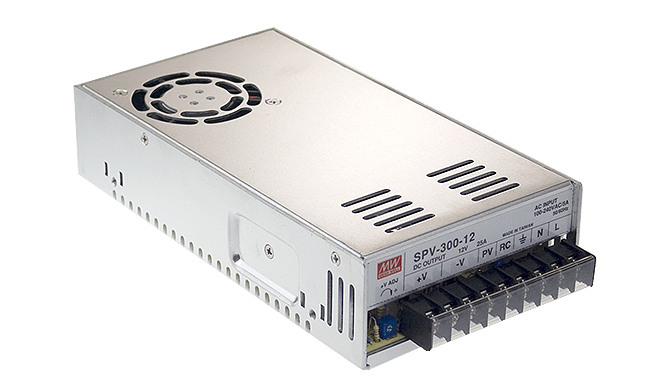

SPV Series
Wattage :150W~300W
Features :
Built-in active PFC function
Output voltage programmable from 20~110%
Model：SPV-150 / SPV-300
RST Series
Wattage :5000W~10000W
Features :
Single output power supply with 5000W / 10000W high wattage
3 phase input:3-wire / △196~305VAC or 4-wire / Y340~530VAC
Built-in active PFC function
High efficiency up to 91%
20000W with built-in parallel (active current sharing) function
Output voltage and constant current level programmable
5 years warranty
Model：RST-5000 / RST-10000
RSP-750~3000 Series
Wattage :750W~3000W
Features :
Programmable high power with active PFC function
Output voltage programmable
Constant current level Icc programmable (RSP-750/1600 only)
1U low profile (41mm) : RSP-750/1000/1600/2000,
2U profile : RSP-1500/2400/3000
Built-in current sharing (except RSP-750)
5 years warranty
Model：RSP-750 / RSP-1000 / RSP-1500 / RSP-1600 / RSP-2000 / RSP-2400 / RSP-3000
AC/DC> Rack Power- 19″ Rack Power Unit
RCP Series
Wattage :1000W~18000W
Features :
Complete rack mountable front end solution: rectifier and charger
1U low profile
19 inch rack shelf available
Model
Power：RCP-1000 / RCP-1600 / RCP-2000
Charger：RCB-1600
Controller & Monitor ：RCP-MU / RKP-CMU1
CMU2 Series
Wattage :N/A
Features :
Integration on system power
2 models in 3U 19-inch rackmount and standalone configurations
7″ touch Panel and buttons for easy on-site operation
Ethernet port for on-site or remote monitor and control over the system
Selectable PMBus, CANbus, RS-485, and RS-232 communication protocols
Web-based monitor/control UI provided for various applications
Model：CMU2
DRP Series
Wattage :3200W
Features :
Complete rack mountable front end solution: rectifier and charger
1U low profile
19 inch rack shelf available
Model
Power：DRP-3200
Shelf：DHP-1UT
Charger：DBR-3200
AC/DC> Configurable- Modular Power Supply
NMP Series
Wattage :650W/1200W
Features :
Medical (2x MOPP) ITE safety approvals
Suitable for BF application with appropriate system consideration (Touch current < 100uA/264VAC)
1U low profile
Built-in parallel function / output programmable / global enable / remote local ON-OFF / auxiliary DC output / over temperature alarm / DC OK
Cooling by thermostatically controlled fan with fan alarm function
Model：NMP650 / NMP1K2
UMP Series
Wattage :400W
Features :
Fan-less, 1U design
Modular design, with DC-DC module cards (NID35/65/100 series models)
Can be used as a single rail PSU
wide operating temperature ranges from -30 ~ +70 ° C
Meet OVC III requirements
Meet 2x MOPP isolation requirements, ideal for BF rated medical equipment
Model：UMP-400
MP Series
Wattage :450W/650W/1000W
Features :
Configurable/customizable/flexible power supply
Built-in active PFC function
5 slot output for MP450/650,
7 slot output for MP1k0
75W/100W/150W/210W/300W/360W module available
Model：MP450 / MP650 / MP1K0
AC/DC> LED Driver- LED Driver
AP Series
Wattage :8W~35W
Features :
90~264VAC input
Rectangular plastic case with IP42 level
Class II design, without FG
Low cost, small and compact size
Constant voltage mode for APV series
Constant current mode for APC series
Suitable for indoor LED lighting and moving sign applications
Model
C.V.：APV-8 / APV-12 / APV-16 / APV-25 / APV-35
C.C.：APC-8 / APC-12 / APC-16 / APC-25 / APC-35
AP-E Series
Wattage :8W~16W
Features :
180~264VAC input only
Rectangular plastic case with IP42 level
Class II design, without FG
Low cost, small and compact size
Constant voltage mode for APV-E series
Constant current mode for APC-E series
Suitable for indoor LED lighting and moving sign applications
Model
C.V.：APV-8E / APV-12E / APV-16E
C.C.：APC-8E / APC-12E / APC-16E
ELG Series
Wattage :75W~300W
Features :
100~305VAC input range
Metal case, IP67/IP65 design for indoor or outdoor installations
Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150 BE-Type)
Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
Suitable for LED street lighting and outdoor LED lighting
5 years warranty
Model
C.V.+C.C.：ELG-75 / ELG-100 / ELG-150 / ELG-200 / ELG-240 / ELG-300
ELG-C Series
Wattage :75W~300W
Features :
100~305VAC input range
Constant current (C.C.) output
Constant power (C.P.) output
Built-in active PFC function
No load/standby power consumption <0.5W
Metal case, IP67/IP65 design for indoor or outdoor installations
Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150-C BE-Type)
Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
Suitable for LED street lighting and outdoor LED lighting
5 years warranty
Model
C.C.：ELG-75-C / ELG-100-C / ELG-150-C / ELGT-150-C / ELG-200-C / ELG-240-C
C.P.：ELGC-300

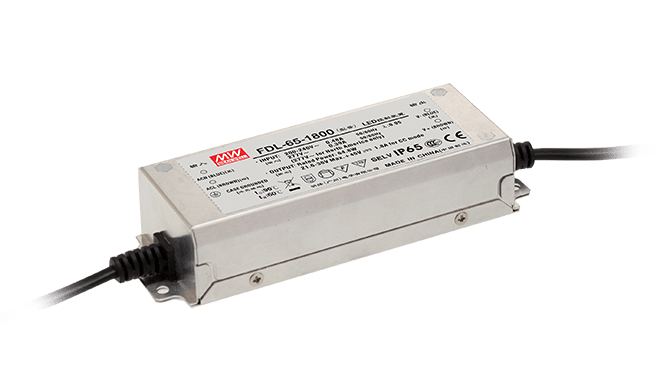

FDL Series
Wattage :65W~100W
Features :
180~295VAC input range
Built-in active PFC function
Constant current design
Fully encapsulated with IP65 level (FDL-65)
No load power consumption <0.5W
3 years warranty
Model
C.C.：FDL-65
C.P. ：
HBG(P) Series
Wattage :60W~240W
Features :
Circular shape design:
HBG-60 : plastic case; HBG-100/160/240 : metal case; HBG-60P/100P/160P/240P : PCB type
90~305VAC input, built-in active PFC function [90~295VAC for HBG-60(P)]
Circular shape design: HBG-60: plastic case, HBG-100/160/240: metal case HBG-60P/100P/160P/240P:PCB type
IP67/IP65 design for indoor or outdoor installations for HBG-100/160/240
Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) for HBG-100(P)/160(P)/240(P) B type
Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HBG-100/160 only)
Suitable for LED high/low bay lighting, stage lighting and spot lighting
5 years warranty
Model
Case：HBG-60 / HBG-100(DA) / HBG-160(DA) / HBG-200(DA) / HBG-240(DA) / HBGC-300
PCB：HBG-60-P / HBG-100P(DA) / HBG-160P(DA) / HBG-240P
HLG Series
Wattage :40W~600W
Features :
90~305VAC input, built-in active PFC function
96% high efficiency (HLG-600H)
Metal case, IP67/IP65 design for indoor or outdoor installations
Function options:
output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming
Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
Suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement
IP68/-55℃ startup/10G vibration options available (Please contact MEAN WELL for details)
7 years warranty
Model
C.V.+C.C.：HLG-40H / HLG-60H / HLG-80H / HLG-100H / HLG-120H / HLG-150H / HLG-185H / HLG-240H / HLG-320H / HLG-480H / HLG-600H
HLG-C Series
Wattage :70W~480W
Features :
90~305VAC input, built-in active PFC function
Constant current output with high output voltage >60VDC
Metal case, IP67/IP65 design for indoor or outdoor installations
Function options:
output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming; smart timer dimming
Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HLG-240H-C/320H-C only)
Suitable for LED street lighting and outdoor LED lighting
7 years warranty
Model
C.C.：HLG-60H-C / HLG-80H-C / HLG-120H-C / HLG-185H-C / HLG-240H-C / HLG-320H-C / HLG-480H-C
HVG(C) Series
Wattage :65W~1000W
Features :
Wide input range 180~528VAC
Metal case, IP67/IP65 design for indoor or outdoor installations
Built-in active PFC function
Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); timer dimming; smart timer dimming
Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (except for HVG-65 and HVGC-65/100)
Suitable for LED street lighting and outdoor LED lighting applications
5 years warranty
Model
C.V.+C.C.：HVG-65 / HVG-100 / HVG-150 / HVG-240 / HVG-320 / HVG-480
C.C.：HVGC-65 / HVGC-100 / HVGC-150 / HVGC-240 / HVGC-320
C.P. ：HVGC-480 / HVGC-650 / HVGC-1000
LDB-L/LW Series
Wattage :300/350/500/600mA
Features :
Constant current DC/DC buck-boost LED driver
High efficiency up to 91%
Comply with EN55015 and FCC part 15 without additional input filter and capacitors
PWM dimming and remote ON/OFF control
Suitable for buck-boost type lighting systems (additional mother board is required)
Pin, wire style for choice
Model
Buck-boost：LDB-L

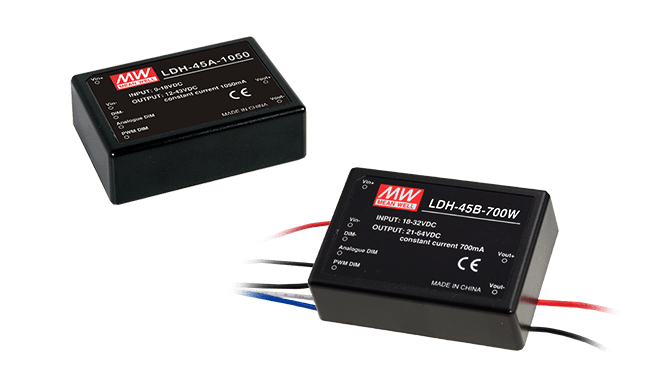

LDH Series
Wattage :350~1750mA
Features :
Constant current output DC/DC step-up LED driver
High efficiency up to 95%
Comply with EN55015 without additional any components
PWM+analog dimming and remote ON/OFF control
Suitable for boost type lighting systems (Additional mother board is required)
Pin, wire style for choice
Model Step-up：LDH-25 / LDH-45(DA) / LDH-65
LP Series
Wattage :18W~150W
Features :
90~264VAC input (except for 18W and 150W)
Slim plastic case with IP67 level
Economical design
Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100)
-30~70℃ wide operation range
Suitable for economical LED lighting and moving sign applications
Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPVL-150 only)
Model
C.V.：LPL-18 / LPH-18 / LPV-20 / LPV-35 / LPV-60 / LPV-100 / LPVL-150 / LPV-150
C.C.：LPHC-18 / LPC-20 / LPC-35 / LPC-60 / LPC-100 / LPC-150
ODL Series
Wattage :45W~65W
Features :
Constant current output mode (ODLC Series)
Constant voltage output mode (ODLV Series)
Flicker free design( ODLC Series)
Built-in active PFC function
Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )
Suitable for indoor LED lighting applications
Model
C.C.：ODLC-45(DA) / ODLC-65(DA)
LDD-L Series
Wattage :300/350/500/600/700mA
Features :
Constant current output DC/DC step-down converter
High efficiency up to 97%
Comply with EN55015 and FCC part15 without additional input filter and capacitors
PWM dimming and remote ON/OFF control
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully encapsulated with IP67 level for pin and wire style
Suitable for driving illumination LED
3 years warranty
Model
C.C：LDD-L
LDD-H Series
Wattage :300~1400mA
Features :
Constant current output DC/DC step-down converter
Comply with EN55015 and FCC part15 without additional input filter and capacitors
PWM dimming and remote ON/OFF control
Protections: Short circuit / Over temperature
Cooling by free air convection
Suitable for driving illumination LED
3 years warranty
Model
C.C：LDD-H / LDD-H-DA / NLDD-H / LDDS-H
DLP-04 Series
Wattage : 4
Features :
90~295VAC full range input
Slim design
Plastic case with class II
No load/standby power consumption<0.5w( type L)
Withstand 300VAC surge input for 5 seconds
-20~+60℃ working temperature
Protections: short circuit / over voltage
Dimension: DLP-04R : 35*90*54.5 mm (W*H*D)
DLP-04L : 145*38*22 mm (L*W*H)
3 years warranty
Model
Din Rail Type：DLP-04R
Slim Type：DLP-04L
LDC Series
Wattage :35W~80W
Features :
Constant power output
Flicker free design
3 in 1 dimming：0~10Vdc、PMW signal or resistance
Built-in active PFC function
No load power consumption <0.5W
working temperature： -25~+90℃
Protections: short circuit /
UL/ENEC/TUV/CCC/CB/CE certified
5 years warranty
Model
XLG Series
Wattage :20W~320W
Features :
Wide input range 100~305VAC (90~305VAC for XLG-20)
Constant power mode with adjustable output current (Constant current mode for XLG-20)
Built-in active PFC function and Efficiency up to 90%
Dimming functions with 3 in 1
Protections: Short circuit/ Over voltage/ Over temperature
Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20
Model
XLG：XLG-20 / XLG-25 / XLG-50 / XLG-75 / XLG-100 / XLG-150 / XLG-200 / XLG-240 / XLG-320
XBG Series
Wattage :100W~240W
Features :
Wide range 100~305VAC mains input
Circular shape with Patent Design(Patent No.CN201220314551) and Seal housing IP67
Built-in active PFC function and constant power mode
AC input cable with waterproof connector for flexible using
Surge protection: 6 KV /4KV
Protections: short circuit, over voltage, over temperature
Life time >50,000 Hrs. and 5 years warranty
Model：XBG-100 / XBG-160 / XBG-240
SLD Series
Wattage :50~80W
Features :
Wide input range 110~305V AC
Slim and linear housing design
Built-in active PFC function and efficiency up to 90%
Design with class 2/II and SELV
Protections: Short circuit/Over voltage/Over temperature
3 years warranty
Model：SLD-50 / SLD-80
LCM- IoT Series
Wattage :25W~60W
Features :
Constant Current output and adjustable by dip switch
Flicker-free design
Plastic housing and class II design without FG
Built-in active PFC function
Dimming functions: Bluetooth Mesh and Push dim
Surge protection with 2KV(L-N)
Protections: Short circuit/Over voltage/Over temperature
Model：LCM-25-IoT / LCM-40-IoT / LCM-60-IoT
PWM-IoT Series
Wattage :60W~200W
Features :
Constant Voltage output with 12V/24V/48V
Flicker free design
Plastic housing and class II design without FG
Built-in active PFC function
Surge protection with 2KV(L-N)
Protections: Short circuit/Over voltage/Over temperature
Model：PWM-60-IoT / PWM-120-IoT / PWM-200-IoT
GSV Series
Wattage :30W~60W
Features :
Various DC Plug Converter available
Class II/2 power unit, no FG
Constant voltage design
Built-in active PFC function with EN61347-1 regulation
No load power consumption<0.5W
Model：GSV30 / GSV60
DLC-02
Wattage :8W
Features :
Comply with IEC 62386 DALI-2, and Part 101/103/207/208/301/302/303/304
2 x channels of DALI bus, for control gear and control device using
4 x programmable relays, for electrical switch or curtains control
DLC software for system settings or remotely through internet
Built-in LCD display and control buttons to set and view settings
Built-in timer IC, commission schedule
Communication interface: RJ-45 and KNX, for connection expansion with other building automation systems
DIN-Rail mounting, compact design 8SU width (144x 90x 58.4mm)
Model：DLC-02
NHDD Series
Wattage :40W
Features :
Constant current mode output
For DC 380V BUS lighting luminaire driver on board (DoB) solution available
Plastic housing and fully encapsolated
Built-in PWM and remote ON/OFF control
Protections: Short circuit / Over temperature
5 years warranty
Model：NHDD-40
PLD Series
Wattage :16W~60W
Features :
16W: 90~135VAC or 180~295VAC
25W: 90~295VAC
40W/60W: 180~295VAC
Built-in active PFC function
Fully isolated plastic case with IP42 level
Class II design, without FG
Constant current mode
Suitable for indoor LED lighting
Model
C.C.：PLD-16 / PLD-25 / PLD-40 / PLD-60
PLM Series
Wattage :12W~40W
Features :
110~295VAC input (180~295VAC input for E type)
Built-in active PFC function
Fully isolated plastic case with IP30 level
Class II design, without FG
Push terminal I/O
Constant current mode
No load power consumption<0.5W
Suitable for indoor LED lighting
Model C.C.：PLM-12 / PLM-25
PCD Series
Wattage :16W~60W
Features :
16W/25W: 90~135VAC or 180~295VAC 40W/60W: 180~295VAC
AC phase-cut dimming, work with leading and trailing edge TRIAC dimmers
Fully isolated plastic case with IP42 level
Built-in active PFC function
Class II design, without FG
Constant current mode
Suitable for indoor LED lighting
Model C.C.：PCD-16 / PCD-25 / PCD-40 / PCD-60
LPF Series
Wattage :16W~90W
Features :
90~305VAC input, built-in active PFC function
Fully isolated plastic case with IP67 level (16W optional)
Class II design, without FG
Built-in 3 in 1 dimming function for D type (1~10VDC, PWM signal or resistance)
Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPF-90/90D)
Suitable for LED lighting and moving sign applications
5 years warranty
Model
C.V.+C.C.：LPF-16 / LPF-25 / LPF-40 / LPF-60 / LPF-90
C.C. (3 in 1 Dimming)：LPF-16D / LPF-25D / LPF-40D / LPF-60D / LPF-90D
NPF Series
Wattage :40W~200W
Features :
90~305VAC input, built-in active PFC function
Fully isolated plastic case with IP67 level
Class II design, without FG
No load/standby power consumption<0.15W (<0.5W for D type)
Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off ) for D type
Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries [NPF-40(D)/-60(D)/-120(D) only]
Suitable for LED lighting and moving sign applications
5 years warranty
Model
C.V.+C.C.：NPF-40 / NPF-60 / NPF-90 / NPF-120 / NPF-200
C.C. (3 in 1 Dimming)：NPF-40D / NPF-60D / NPF-90D / NPF-120D
PWM Series
Wattage :40W~200W
Features :
90~305VAC input, built-in active PFC function
Fully isolated plastic case with IP67 level
Constant voltage PWM style output
Class II design, without FG
No load power consumption<0.5W
Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off)
Suitable for LED strip lighting
5 years warranty
Model
C.V.：PWM-40 / PWM-60(DA) / PWM-90(DA) / PWM-120(DA) / PWM-200
PLC Series
Wattage :30W~96W
Features :
90~264VAC input, built-in active PFC function
Fully isolated plastic case with screw terminal style of I/O
Suitable for indoor LED lighting and moving sign applications
Model
C.V.+C.C.：PLC-100
PLN Series
Wattage :20W~96W
Features :
90~295VAC input (90~277VAC for PLN-20), built-in active PFC function
Fully isolated plastic case with IP64 level
Suitable for indoor LED lighting and moving sign applications
Model
C.C.：PLN-20 / PLN-30 / PLN-45 / PLN-60
C.V.+C.C.：PLN-100
HLN Series
Wattage :40W~80W
Features :
90~305VAC input, built-in active PFC function
Fully isolated plastic case with IP64 level
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for B type
User adjustable output voltage and current level for A type
Suitable for indoor LED lighting and moving sign applications
Model
C.V.+C.C.：HLN-40H / HLN-60H / HLN-80H
LCM Series
Wattage :25W~60W
Features :
180~295VAC input for 40W/60W, 180~277VAC input for 25W
Constant current mode
Built-in active PFC function
Multiple-stage output current level selectable by DIP switch
Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)
Built-in DALI interface and push dimming function for DA type
Suitable for indoor LED lighting applications
Model
3 in 1 Dimming：LCM-25 / LCM-40(EO) / LCM-60(EO)
DALI Dimming：LCM-25DA / LCM-40DA / LCM-60DA
LCM-U Series
Wattage :40W~60W
Features :
90~132VAC input only
Constant current mode
Built-in active PFC function
Multiple-stage output current level selectable by DIP switch
Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)
Built-in DALI interface and push dimming function for DA type
Suitable for indoor LED lighting applications
Model
3 in 1 Dimming：LCM-40U(EO) / LCM-60U(EO)
DALI Dimming：LCM-40UDA / LCM-60UDA
IDL Series
Wattage :25W~65W
Features :
Constant current output mode (IDLC Series)
Constant voltage output mode (IDLV Series)
Flicker free design (IDLC Series)
Built-in active PFC function
Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )
Suitable for indoor LED lighting applications
Model
C.C.：IDLC-25 / IDLC-45(DA) / IDLC-65(DA)
C.V. ：IDLV-25 / IDLV-45 / IDLV-65

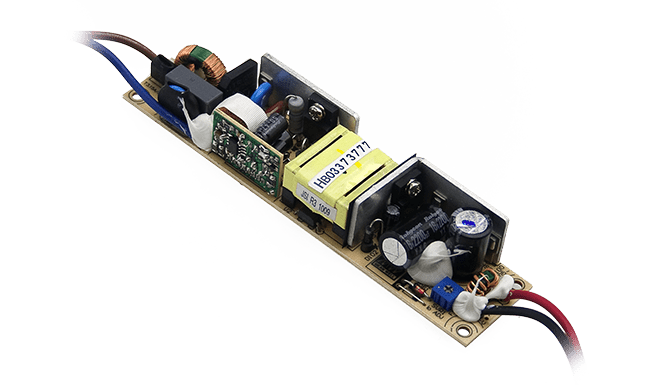

PLP Series
Wattage :30W~60W
Features :
90~264VAC input , built-in active PFC function
Suitable for built-in LED lighting systems
Model

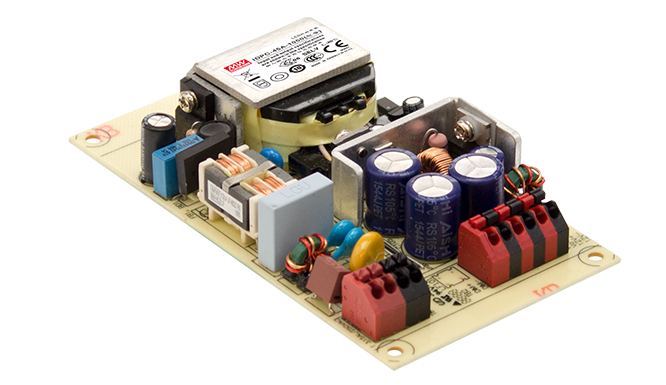

IDP Series
Wattage :25W~65W
Features :
Constant current output mode(IDPC Series)
Constant voltage output mode(IDPV Series)
Flicker free design(IDPC Series)
Built-in active PFC function
Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )
Suitable for built-in LED lighting systems
Model
C.C.：IDPC-25 / IDPC-45(DA) / IDPC-65(DA)
C.V. ：IDPV-25 / IDPV-45 / IDPV-65
HLP Series
Wattage :40W~80W
Features :
90~305VAC input, built-in active PFC function
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)
Suitable for built-in LED lighting systems
Model
C.C.：HLP-40H / HLP-60H / HLP-80H
AC/DC> Charger- External Battery Charger
Portable Type: Programmable Desktop Charger
Wattage :120W~360W
Features :
ENC: Programmable charger
ENP: Level VI desktop switching power supply
Charging voltage, charging current and timeout can be programmed through SBP-001
NTC for temperature compensation (ENC series)
Fanless design, and noise free
Protections: Short circuit, over voltage, over temperature protection (ENC/ENP series). Battery under voltage, battery over voltage, reverse polarity protection(only for ENC series)
Suitable for lead-acid batteries
3 years warranty
Model
Power：ENP-120 / ENP-180 / ENP-240 / ENP-360
Charger：ENC-120 / ENC-180 / ENC-240 / ENC-360
Portable Type: Adaptor Charger
Wattage :30W~330W
Features :
Fanless design with plastic enclosure, leading lower touch temperature
2 Stage charging (C.C./C.V.)
No load power consumption<1W, and low carbon emission
AC inlet
A type：IEC320-C14; B type：IEC320-C8;
E type: EU plug; U type: US plug
Standard DC output plug (Optional plugs are available)
2 years warranty
Model
Class II：GC30B / GC30E / GC30U
Class I：GC120 / GC160 / GC220 / GC330
Portable Type: Metal Enclosure Charger
Wattage :120W~360W
Features :
Standard type highly reliable wide voltage range charger
Metal enclosure for better heat dissipation , leading lower touch temperature
Easy and flexible adjustment:
‧ Charging voltage adjustable through front panel (10.5~15.2V, 21~30.4V, 42~60.8V)
‧ Charging current adjustable through panel (50~100% of rated current)
‧ 2 or 3 stage selectable by DIP S.W. on front panel
Protections: Short circuit, over voltage, over temperature, battery reverse polarity
Comply with UL/EN62368-1 and IEC60335-1/2-29 dual certifications
Multiple DC output plugs selectable: Anderson, terminal block and 4 pin power pin
3 years warranty
Model
New models：NPB-120 / NPB-240 / NPB-360
Stationary Type: Intelligent Chargers With High Efficiency And Good Value
Wattage :450W~1700W
Features :
Intelligent general type highly reliable and wide output range charger
Ultra wide charging range auto sensing function [10.5~21V, 21~42V, 42~80V, 54~100V (NPB-450 only)]
Built-in CANbus protocol
Charging voltage, charging current and timeout can be programmed through SBP-001
Charging current adjustable through panel (50~100% of rated current)
4 default charging curves can be selected through DIP switch on panel
2 or 3 stage charging can be adjusted through DIP switch on panel
NTC for temperature compensation (ENC series)
Implement temperature controlled low noise fan
Auto derating when over temperature
-30 ~+70oC wide operating temperature, minimized environmental limitations
Suitable for lead-acid and lithium batteries
Comply with UL/EN 62368-1 and IEC/EN62368-1/-2-29 dual certifications
Optional hand carry handle (Order No.: Carry Handle)
3 years warranty
Model
New models：NPB-450 / NPB-750 / NPB-1200 / NPB-1700
Old models：PB-300 / PB-360 / PB-600 / PB-1000
Stationary Type: 2 in 1 models With High Efficiency And Good Value (Charger and Power Supply)
Wattage :450W~1700W
Features :
Can easily switch between charger and power supply
3 stage charging, only suitable for lead-acid batteries
Charging voltage adjustable through panel [10.5~21V, 21~42V, 42~80V, 54~100V(NPB-450 only)]
Charging current adjustable through panel (50~100% of rated current)
-30 ~+70oC wide operating temperature, minimized environmental limitations
Protections: Short circuit, over voltage, over temperature
Optional hand carry handle (Order No.: Carry Handle)
Comply with UL/EN 62368-1 and IEC/EN62368-1/-2-29 dual certifications
3 years warranty
Model
：NPP-450 / NPP-750 / NPP-1200 / NPP-1700
Stationary Type: Miniaturized High-Power Intelligent Chargers
Wattage :1600W~3200W
Features :
RPB/DBU series: Enclosed type charger
RCB/DBR series: Rack type charger
High power density up to 37W/inch3
Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
Output voltage/current, 2 or 3 stage charging curve, and timeout can be programmed through SBP-001
Charging voltage 75%~125% (10.8~18V,21.6~36V, 43.2~72V) can be adjusted via external 1~5Vdc
Charging current 20~100% can be adjusted via external 1~5Vdc
Built-in OR-ing FET, support hot swap (RCB-1600 and DBR-3200 series only)
Active current sharing up to 25600W
Protections: Battery under voltage, battery disconnect, short circuit, over voltage, over temperature
Suitable for lead-acid and lithium batteries
5 years warranty
Model：RPB-1600 / RCB-1600 / DBU-3200 / DBR-3200
Stationary Type: Charger for Harsh Environment
Wattage :600W
Features :
Fully potted and fanless design with aluminum enclosure
-40~+70oC wide operating temperature
Withstand 10G vibration test
Operating altitude up to 5000 meters
Output voltage (11.5~15.1V, 23~30.2V, 46.1~60.5V) can be adjusted through internal potentiometer
Output current 50~100% can be adjusted through internal potentiometer
Protections: Short circuit, over voltage, over temperature
6 years warranty
Model：HEP-600C
Accessory— Smart Battery Charging Programmer
Wattage :NA
Features :
This programmer is able to work with computer and change the related charging parameter with simple connection (connection wire included). In addition, external power supply or battery is not needed when modifying the charging parameters.
Model：SBP-001
AC/DC> Adaptor- External Switching Power Supply
Industrial – Desktop (Level V)
Wattage :15W
Features :
Various DC Plug Converter available
Energy efficiency level VI
No load power consumption <0.075W
Comply with EISA 2007, NRCan, MEPS and ErP
0~50℃ working temperature
A type: Class I (with FG), IEC320-C14;
B type: Class II (no FG), IEC320-C8
2 years warranty
Model
Class I：GS15A
Class II：GS15B
Industrial – Desktop (Level VI)
Wattage :15W~360W
Features :
Various DC Plug Converter available
Global safety certificates for GST series :
UL, TUV, PSE, RCM, KC, SIRIM, BIS, EAC, BSMI, CCC
Energy efficiency Level VI
No load power consumption <0.075W~0.5W
Comply with EISA 2007/DoE, NRCan, MEPS, ErP and CoC Version 5
Fanless design with -30~+70℃ working temperature
A type: Class I (with FG), IEC320-C14;
B type: Class II (no FG), IEC320-C8
3 years warranty
Model
Extreme Small (Class I)：SGAS15A
Extreme Small (Class II)：SGAS15BClass I：GST18A / GST25A / GST40A / GST60A / GST90A / GST120A / GST160A / GST220A / GST280A / GST360A
Class II：GST18B / GST25B / GST36B / GST360B
Industrial – Wall-mounted (Level VI)
Wattage :5W~60W
Features :
Various DC Plug Converter available
Energy efficiency Level VI
No load power consumption <0.075W~0.15W
Comply with EISA 2007/DoE, NRCan, ErP and CoC Version 5
-30~+70℃ working temperature
2 pole USA plug(U type) / EURO plug(E type) / Interchangeable type for GE series
Slim design for SGA series
3 years warranty
Model
Extreme Small (USA 2 Pin)：SGAS06U / SGAS15U / SGAS60U
Extreme Small (EURO 2 Pin)：SGAS06E / SGAS15E / SGAS60ESlim (EURO 2 Pin)：SGA12E / SGA18E / SGA25E / SGA40E / SGA60E
Slim (USA 2 Pin)：SGA12U / SGA18U / SGA25U / SGA40U / SGA60UFixed (USA 2 Pin)：GS05U-USB / GS06U / GS15U / GST18U / GST25U / GST36U
Fixed (EURO 2 Pin)：GS05E-USB / GS06E / GS15E / GST18E / GST25E / GST36E
Interchangeable：GE12I / GE18I / GE24I / GE30I / GE40I
Medical – Desktop (Level VI)
Wattage :18W~220W
Features :
Various DC Plug Converter available
Medical safety approved (2xMOPP), BF application(B type only)
Energy efficiency Level VI (GSM06/18/25/36/40/60 5~9V: Level V)
No load power consumption <0.1W~0.15W
Comply with EISA/DoE, NRCan, ErP and meet CoC Version 5
A type: Class I (with FG), IEC320-C14;
B type: Class II (without FG), IEC320-C8
3 years warranty
Model
Class I：GSM40A / GSM60A / GSM90A / GSM120A / GSM160A / GSM220A
Class II: GSM18B / GSM25B / GSM36B / GSM40B / GSM60B / GSM90B / GSM120B / GSM160B / GSM220B
Medical – Wall-mounted (Level V / Level VI)
Wattage :6W~36W
Features :
Various DC Plug Converter available
Medical safety approved (2xMOPP), BF applications
Energy efficiency Level VI (GSM06/12 and GSM18/25/36 5~9V for Level V)
No load power consumption <0.075W~0.3W
Comply with EISA/DoE, NRCan, MEPS, ErP and meet CoC Version 5
2 pole USA plug(U type)/EURO plug(E type) for GSM series, interchangeable type for GEM series
3 years warranty
Model
Fixed (USA 2 Pin)：GSM06U / GSM12U / GSM18U / GSM25U / GSM36U / GSM60U
Fixed (EURO 2 Pin)：GSM06E / GSM12E / GSM18E / GSM25E / GSM36E / GSM60E
Interchangeable：GEM06I / GEM12I / GEM18I / GEM30I / GEM40I / GEM60I
Moistureproof – Desktop
Wattage :60W~200W
Features :
Various DC Plug Converter available
IP67 design for power body
Energy efficiency Level VI
No load power consumption <0.15W
E-Type: EU ErP and meet CoC Version 5 (OWA-60E/90E);
U-Type: EISA 2007/DoE and NRCan
Class II (no FG)
5 years warranty
Model
USA 2 Pin：OWA-60U / OWA-90U / OWA-120U / OWA-200U
EURO 2 Pin：OWA-60E / OWA-90E / OWA-120E / OWA-200E
AC/DC> KNX- KNX
KNX-USB Interface
Wattage :NA
Features :
KNX-USB interface
No additional external power supply required
KNX commissioning, addressing and parameter settings
KNX protocol and system visualization
Diagnostic operations
Long messages up to 220 byte APDU
3 years warranty
Model
USB Interface：KSI-01U
KNX IP Router
Wattage :NA
Features :
KNX IP router
4 IP/TP tunnelings
No additional external power supply required
Universal Plug and Play
Telegram filtering
Built-in web front-end page
3 years warranty
Model IP Router：KSR-01IP
KAA-8R Switching Actuator
Wattage :NA
Features :
8 channel actuator in a compact size
Suitable for various and mixed applications
For AX， C-load， capacitive and inductive type of loads
Program via ETS5.0 software
Manual control via Push button
Programmable various time and scene function
3 years warranty
Model：KAA-8R / KAA-8R-S
KAA-4R4V Dimming Actuator
Wattage :NA
Features :
Dimming and switching LED driver and conventional electronic ballast
LED indicator for each channel
Linear or logarithmic dimming curve programmable via ETS software
Manual control via Push button on the panel
Programmable various time and scene function
3 years warranty
Model：KAA-4R4V / KAA-4R4V-S
KNX Line Coupler
Wattage :NA
Features :
KNX TP Line Coupler/Repeater
Telegram filtering function
Long messages support up to 240 byte APDU
Trace the subline traffic
Diagnostic functions
Manual function
3 years warranty
Model：KSC-01L
LCM-KN KNX-LED Driver
Wattage :25W~60W
Features :
Constant Current mode output with multiple levels selectable by dip switch
KNX protocol
Support emergency lighting (EL)
Integrated constant light output
Integrated KNX push button interface
Synchronization up to 10 units
Functions: Manual dim, operation hours, power consumption feedback, log/linear curve selection…etc
Model：LCM-25KN / LCM-40KN / LCM-60KN
PWM-KN Series
Wattage :60W~200W
Features :
Constant Voltage PWM style output with user changeable frequency up to 4KHz compliant IEEE 1789-2015 no risk
Built-in active PFC function
Standby power consumption<0.5W
Integrated KNX control protocol
No need KNX-DALI gateway
Model：PWM-60-KN / PWM-120-KN / PWM-200-KN
KNX Power
Wattage :20W~40W
Features :
EIB/KNX power supply with integrated choke
1∅, 180~264VAC input
No load power consumption <0.5W
Assemble on industrial rail TS-35 / 7.5 or 15
Model Power：KNX-20E-640 / KNX-40E-1280
KDA-64
Wattage :NA
Features :
KNX proof gateway
Easy configuration & installation
Connect up to 64 DALI drivers
Built-in DALI power supply
LCD 2×12 display
Lighting control via the button
Lighting control via the integrated web server
Up to 16 DALI lighting groups setting
Up to 16 DALI scenes setting
3 year warranty
Model Gateway：KDA-64
DLC-02-KN
Wattage :8W
Features :
Comply with IEC 62386 DALI-2, and Part 101/103/207/208
2 x channels of DALI bus, for control gear and control device using
4 x programmable relays, for electrical switch or curtains control
DLC software for system settings or remotely through internet
Built-in LCD display and control buttons to set and view settings
Built-in timer IC, commission schedule
Communication interface: RJ-45 and KNX, for connection expansion with other building automation systems
DIN-Rail mounting, compact design 8SU width (144x 90x 58.4mm)
Model Gateway：DLC-02-KN
AC/DC> AC⇄DC Bidirectional Power Inverter-
BIC Series
Wattage :2200W
Features :
1U low profile design
Full digital design with 93% conversion efficiency for both AD/DC and DC/AD conversion
Ultrafast switching time between AD/DC and DC/AC of 1ms.
CB/TUV/UL 62368-1 certified, and design refer to IEC 62477 regulation
Active current sharing up to 11000W(4+1)
< 3% Low THD in both conversion mode
Force charging and recycle mode with CANbus commend(Optional)
Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP
5 years warranty
Model：BIC-2200
AC/DC> LED Accessory – LED Accessories
DAP-04
Wattage :NA
Features :
90~305VAC input
Convert DALI signal to PWM signal
4 DALI addressable output channels
Meet DALI standards(IEC62386-101,102,207)
Suitable to use along with MEAN WELL’s AC/DC LED PSU with 3 in 1 dimming function
Model DAP-04：DAP-04

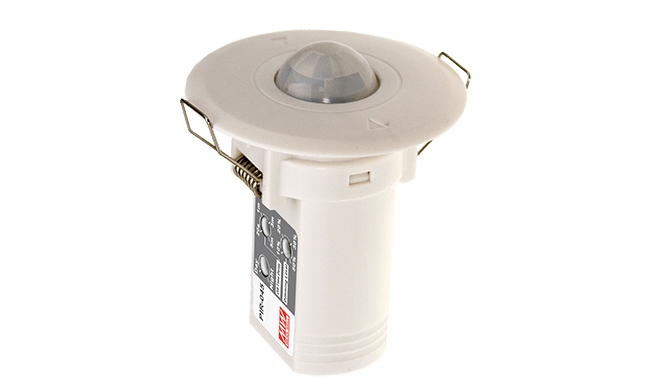

PIR-045
Wattage :NA
Features :
Built-in Passive Infrared sensor module
MCU controller, no relay contact
Adjustable off-time delay / dimming level / sensitivity
Model：PIR-045
SDP-001
Wattage :NA
Features :
Smart timer dimming programmer
Model：SDP-001

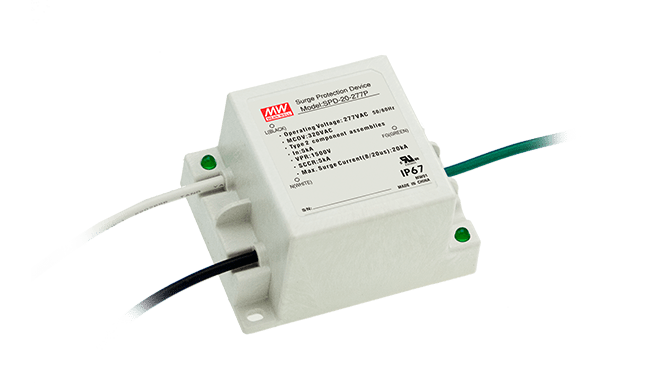

SPD Series
Wattage :NA
Features :
10kA/20kA surge protection device
Line to Ground & Line to Line protected
Suitable for surge protection of LED drivers
IP66/67 design for indoor or outdoor installations
Model
10kA ：SPD-10-320S / SPD-10S-277S

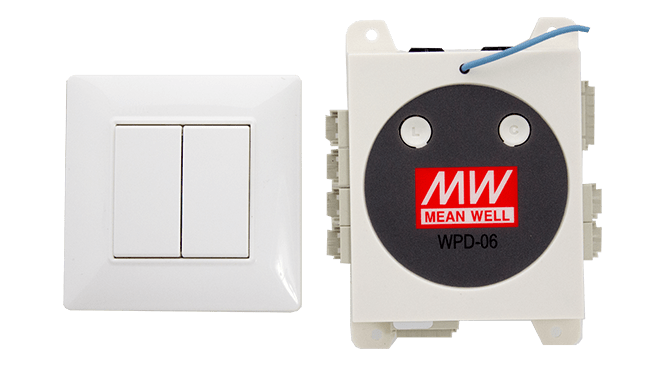

WPD-06
Wattage :NA
Features :
EnOcean wireless control technology
Easy installation and configuration
6 protected and independent dimming output channels
Up to 128 wireless batteryless switches
Suitable for constant voltage lighting application
Up to 30 meter wireless distances
Model：WPD-06
AC/DC> Accessory – Accessories
Waterproof Connector
Wattage :
Features :
- Waterproof connector for LED drivers
Model：CJ04-1 / CJ04-2
Power Schottky Rectififier
Wattage :
Features :
- Power Schottky Rectififier
Model：DH12A40V
Cold plate
Wattage :
Features :
- Suitable for UHP-2500, PHP-3500 series
Model：HS-656
The Cover for Terminal Block
Wattage :
Features :
- Suitable for case 901, 903, 905, 906, 932, 207, 220, 215A, 227A, 238A, 239A, 240A, 241A
Model：TBC-05 / TBC-07 / TBC-08 / TBC-09
DC Changeable Plug
Wattage :
Features :
- Flexible solution for small quantity
- Easy modification for different size of DC plug
- Off-the-shelf and no MOQ
- Suitable for GST18~16, GSM06~60, GEM06~60, GE12~40, SGA12~60, GS06/15, OWA-60U/E, GST90~120, GSM90, GST120~220, GSM120~220, OWA-90U~200U
Model
：DC_PLUG-P1J-P1I / DC_PLUG-P1J-P1M / DC_PLUG-P1J-P1L / DC_PLUG-P1J-P3A / DC_PLUG-P1J-P3B / DC_PLUG-P1J-P3C / DC_PLUG-P1J-P4A / DC_PLUG-P1J-P4B / DC_PLUG-P1J-P4C / DC_PLUG-P1J-P1IR / DC_PLUG-P1J-P1MR / DC_PLUG-P1J-P1LR / DC_PLUG-P1J-P1JR / DC_PLUG-P1M-P1MR / DC_PLUG-P1J-R6B / DC_PLUG-P1J-R7B / DC_PLUG-P1J-R1B / DC_PLUG-P1M-P1J / DC_PLUG-P1M-P1JR / DC_PLUG-P1M-R7B / DC_PLUG-R7BF-P1J / DC_PLUG-R7BF-P1M
AC cable
Wattage :
Features :
- Suitable for adaptor, charger and inverter
Model : YP11_YC13 / YP12_YC12 / YP13_YC13 / YP18_YC12 / YP21A_YC13 / YP22_YC12 / YP35_YC12 / YP61A_YC12
DRL-01
Wattage :
Features :
Suitable for case : 903, 905, 931, 932, 971
Model：DRL-01
DRL-02
Wattage :
Features :
Suitable for case : 901, 902, 906, 915, 916, 920
Model：DRL-02
DRL-03A
Wattage :
Features :
Suitable for case : 980, 987
Model：DRL-03A
DRP-01
Wattage :
Features :
Suitable for case : 901, 902, 903, 906, 931, 932, 946
Model：DRP-01
DRP-01A
Wattage :
Features :
Suitable for case : 203, 205, 978, 999
Model：DRP-01A
DRP-02
Wattage :
Features :
Suitable for case : 905, 915, 916, 920, 928
Model：DRP-02
DRP-03
Wattage :
Features :
Suitable for case : DRP-01, DRL-01~03
Model：DRP-03
DRP-04
Wattage :
Features :
Suitable for case : 203, 205, 978, 999
Model：DRP-04
MHS012
Wattage :
Features :
Suitable for case : 206, 207, 912, 915, 916, 935, 939, 940, 977, 980, 982, 986, 987, 995
Model：MHS012
MHS013
Wattage :
Features :
Suitable for case : 919, 926
Model：MHS013
MHS014
Wattage :
Features :
Suitable for case : 212, 952
Model：MHS014
MHS025
Wattage :
Features :
Suitable for case : 910
Model：MHS025
MHS026
Wattage :
Features :
Suitable for case : 943
Model：MHS026
MHS027
Wattage :
Features :
Suitable for case : 971, 931
Model：MHS027
DC/DC> Din Rail- Din Rail
DDR Series
Wattage :
15~480W
Features :
2:1 or 4:1 wide input range
Fanless design, cooling by free air convection
Protections: short circuit / overload / over voltage / input reverse polarity / input under voltage
LED power indicator
Suitable for DIN rail types: TS-35/7.5 or TS-35/15
4KVdc I/O isolation (reinforced isolation)
Ultra slim dimensions
3 years warranty
Model：DDR-15 / DDR-30 / DDR-60 / DDR-120 / DDR-240 / DDR-480
DDRH Series
Wattage :60W
Features :
150~1500Vdc 10:1 ultra-wide input range
Potted with silicone gel, provides dust and moisture protection and free air convection cooling capability
-30～+80℃ ultra-wide temperature range ( >+55℃ de-rating)
Built-in DC OK relay contact
Protections: short circuit / overload / over voltage / over temperature / DC input under voltage / DC input reverse polarity
Adjustable output voltage (100~120%)
Model：DDRH-60
DC/DC> Module Type- Module Type
Medical – SIP Package
Wattage :1W~6W
Features :
SIP7 package with international standard pinout(1~2W); DIP24 package with international standard pinout (3~6W)
Operating temperature range -40~ +90°C
Medical safety approved (1xMOPP/2xMOOP) according to ANSI AAMI ES60601-1
Low patient leakage current <2μA (1~2W); Low patient leakage current <5μA (3~6W)
Protection: Short circuit(3 second max.) / Overload (3~6W)
3 years warranty
Model
Single：MDS01 / MDS02 / MDS03 / MDS06
Dual：MDD01 / MDD02 / MDD03 / MDD06
Medical- 2″ x 1″ Package
Wattage :15W~20W
Features :
2″ x 1″ package with international standard pinout
Operating temperature range -40~ +90°C
Medical safety approved (2xMOPP according to ANSI AAMI ES60601-1)
Low patient leakage current <5 μA
3 years warranty
Model：MDS15 / MDS20
SMD Package
Wattage :1W~2W
Features :
SMD type
Single and dual output models
Model
Single：SBTN01 / SFTN01 / SFTN02
SIP Package
Wattage :1W~9W
Features :
Regulated and unregulated models
±10% or 2:1 wide input range
On board module type, assemble on the main PCB of the system
Model
Regulated ：SPA01 / DPAN02 / DPBW03 / SPBW03 / SPBW06 / DPBW06 / SPAN02 / SPB09 / DPB09 / SPRN01 / DPRN01
Unregulated ：SMU01 / SMU02 / SPU03 / SPU01 / DPU01
DIP Package
Wattage :0.5W~3W
Features :
Regulated and unregulated models
±10% input range
On board module type, assemble on the main PCB of the system
Model
Regulated ：SRS / SLC03 / DLC03
DIP – 1.25″ x 0.8″ Footprint
Wattage :3W~10W
Features :
DIP24 package
2:1 (standard), 4:1 (option) wide input
1~1.5KVDC (standard), 3KVDC (option) isolation
Single and dual output models
Model
Single：SCW08 / SCW12 / SCWN03 / SCW20 / SCWN06 / RSDW08 / RSDW10
Dual：DCW08 / DCW12 / DCWN03 / DCWN06 / RDDW08 / RDDW10
DIP – 1″ x 1″ Footprint
Wattage : 15W~30W
Features :
DIP package
1.5KVDC isolation
Single output models
Remote ON/OFF control, remote sense, trimming output ±10% by models
Model
Single：SKMW06 / SKM10 / SKMW15 / SKMW20 / SKMW30
Dual：DKMW06 / DKM10 / DKMW15 / DKMW20 / DKMW30
DIP – 2″ x 1″ Footprint
Wattage :5W~60W
Features :
DIP package
2:1, 4:1,18:1 wide input
1~1.5KVDC (standard), 3KVDC (option) isolation
Single and dual output models
Remote ON/OFF control, remote sense, trimming output ±10% by models
Model
Single：SLW05 / SKE10 / SKA15 / SKA20 / SKM30 / SKM50 / RSDW20 / RSDW20UW / RSDW40 / RSDW60
Dual：DLW05 / DKE10 / DKA15 / RDDW20 / RDDW20UW / RDDW40 / RDDW60
DIP – 2″ x 2″ Footprint
Wattage :15W~60W
Features :
DIP package
2:1 (standard), 4:1 (option) wide input
1~1.5KVDC isolation
Single, dual and triple output models
Model
Single：SKE15 / SDM30 / SKA40 / SKA60
Triple：TKA30
Half-brick
Wattage :75W~150W
Features :
Half-brick size (2.28” x 2.4” x 0.5”)
DIP package
2:1 wide input range, 1.5KVDC isolation
Built-in remote ON/OFF and remote sense
2.5V / 3.3V / 15V output available
Optional heat sink available
Model：MHB75 / MHB100 / MHB150
DC/DC> On Board Type – On Board Type
Non-Isolated: N78 Series
Wattage :3.3W~15W
Features :
Pin-out compatible with LM78xx / LM79xx linear regulators
High efficiency up to 96%, no heatsink required
Wide input range up to 36V
Support negative output
Operating temperature range -40 ~ +85oC
Comply to BS EN/EN55032 radiated Class B without additional components
Protection: Short circuit / Overload / Over temperature
3 years warranty
Model：N78
Non-Isolated: NID Series
Wattage :30W~100W
Features :
3:1 wide input range
High efficiency up to 97%
Built-in remote ON/OFF control
Economical open frame design
Model：NID35 / NID65 / NID100
Isolated: NSD Series
Wattage :5W~15W
Features :
4:1 wide input range
1~1.5KVDC isolation by models
Built-in remote ON/OFF contro
Low cost, high reliability
Model
Single：NSD05-S / NSD10-S / NSD15-S
DC/DC> PCB Type – PCB Type
PSD Series
Wattage :5W~45W
Features :
2:1 wide input range
1.5~2KVAC isolation by models
Model：PSD-15 / PSD-30 / PSD-45
DC/DC> Enclosed Type – Enclosed Type
RSD Series
Wattage :30W~500W
Features :
Compliance with EN50155 and EN45545-2 railway standard
2:1 or 4:1 wide input range
Isolation: 4000VDC
1U low profile
Half encapsulated
Model：RSD-30 / RSD-60 / RSD-100 / RSD-150 / RSD-200 / RSD-300 / RSD-500
SD Series
Wattage :15W~1000W
Features :
2:1 wide input range (4:1 for SD-500/1000)
1.5~2KVAC isolation by models
1U low profile (41mm) for SD-1000
12V/0.25A auxiliary output for SD-500/1000
Built-in remote ON/OFF control and remote sense for SD-500/1000
Model：SD-15 / SD-25 / SD-50 / SD-100 / SD-150 / SD-200 / SD-350 / SD-500 / SD-1000
DC/AC> Modified Sine Wave-
A301/302 Series
Wattage :100W~2500W
Features :
Modified sine wave output, suitable for resistive load
Low cost
1 year warranty
Model：A301,302-100 / A301,302-150 / A301,302-300 / A301,302-600 / A301,302-1K0 / A301,302-1K7 / A301,302-2K5
DC/AC> True Sine Wave –
NTS Series (Built-In Type)
Wattage :250W~400W
Features :
DC-AC pure since wave output (THD<3%)
Convection cooled fanless design, high efficiency up to 93%
200% Peak power capability
Built-in DIP switches to adjust AC output voltage, frequency, and work mode
Multiple intelligent protection functions:
DC input side – reverse polarity, under voltage, over voltage protections
AC output side – short circuit, overload, over temperature protections
Model：NTS-250P / NTS-400P
NTS Series
Wattage :300W~3200W
Features :
DC-AC pure since wave output (THD<3%)
Convection cooled fanless design, high efficiency up to 93%
Built-in DIP switches to adjust AC output voltage, frequency, and work mode
Multiple intelligent protection functions:
DC input side – reverse polarity, under voltage, over voltage protections
AC output side – short circuit, overload, over temperature protections
Model：NTS-300 / NTS-450 / NTS-750 / NTS-1200 / NTS-1700 / NTS-2200 / NTS-3200
NTU Series
Wattage :1200W~3200W
Features :
Built-in DIP switches to adjust AC output voltage, frequency, and work mode
DC-AC pure since wave output (THD<3%)
Remote controller(IRC1, IRC2, IRC3)
Multiple intelligent protection functions:
DC input side – reverse polarity, under voltage, over voltage protections
AC output side – short circuit, overload, over temperature protections
Model：NTU-1200 / NTU-1700 / NTU-2200 / NTU-3200
TN Series
Wattage :1500W~3000W
Features :
True sine wave with solar charger & by-pass function
High surge power up to 200%
Output voltage / frequency adjustable
Conformal coating
Computer-based monitoring software, recommended for Windows 7 and Windows 8 Operating System (English and Chinese version)
3 years warranty
Model：TN-1500 / TN-3000
TS Series
Wattage :200W~3000W
Features :
True sine wave output, suitable for motor related applications
High surge power up to 200%
Output voltage / frequency adjustable
Conformal coating (except for TS-200/400)
3 years warranty
Model：TS-200 / TS-400 / TS-700 / TS-1000 / TS-1500 / TS-3000
IRC Series
Wattage :
Features :
Remote controller for TS-700~3000 , TN-1500~3000
Model：IRC1 / IRC2 / IRC3
DC/AC> Solar Inverter – Solar Inverter
ISI Series
Wattage :
500W
Features :
ISI-500: Modified sine wave with MPPT solar charger
ISI-501: True sine wave with MPPT solar charger
High surge power up to 200%
2 years warranty (ISI-500), 3 years warranty (ISI-501)
Model：ISI-501
DC/AC> AC⇄DC Bidirectional Power Inverter-
BIC Series
Wattage : 2200W
Features :
1U low profile design
Full digital design with 93% conversion efficiency for both AD/DC and DC/AD conversion
Ultrafast switching time between AD/DC and DC/AC of 1ms.
CB/TUV/UL 62368-1 certified, and design refer to IEC 62477 regulation
Active current sharing up to 11000W(4+1)
< 3% Low THD in both conversion mode
Force charging and recycle mode with CANbus commend(Optional)
Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP
5 years warranty
Model : BIC-2200
